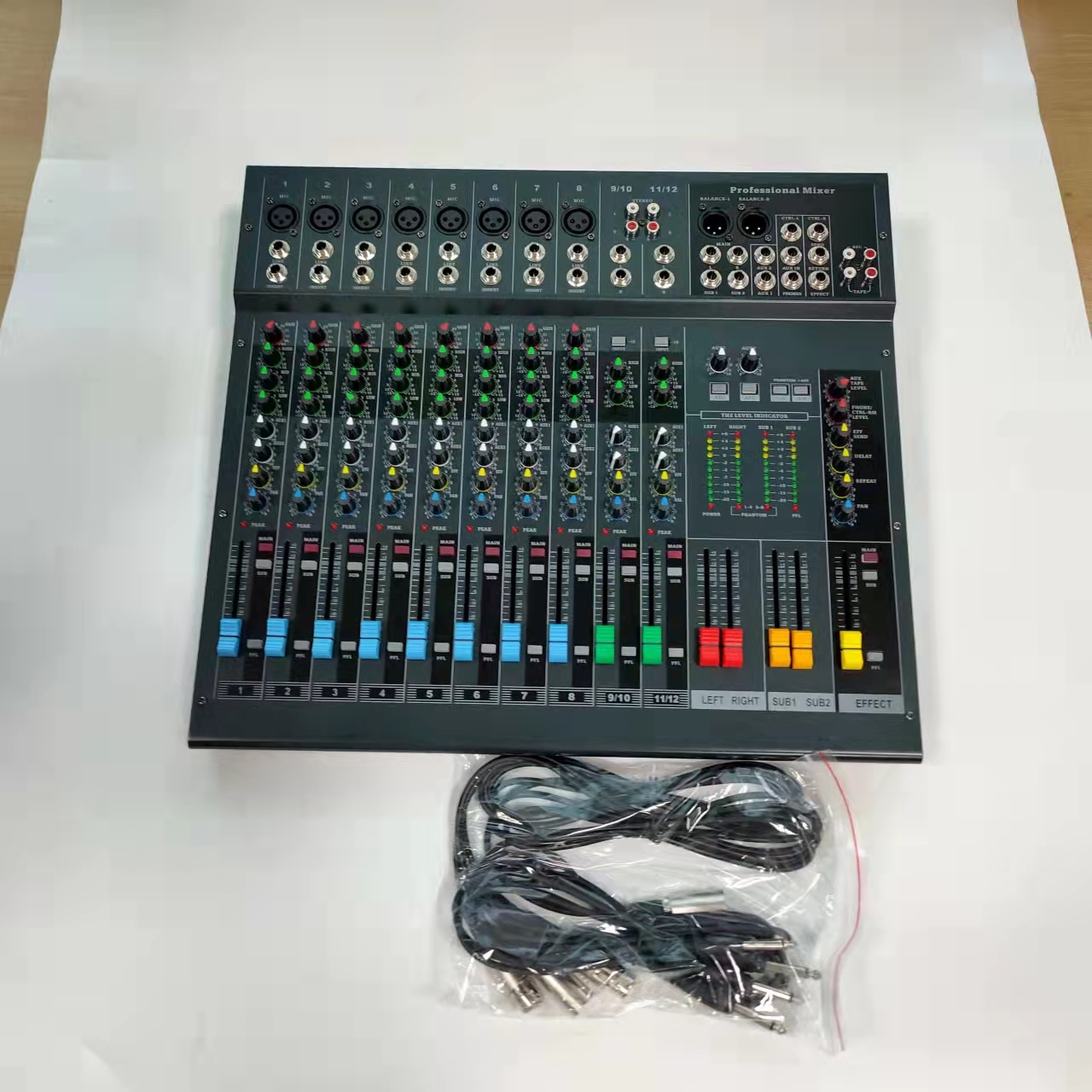

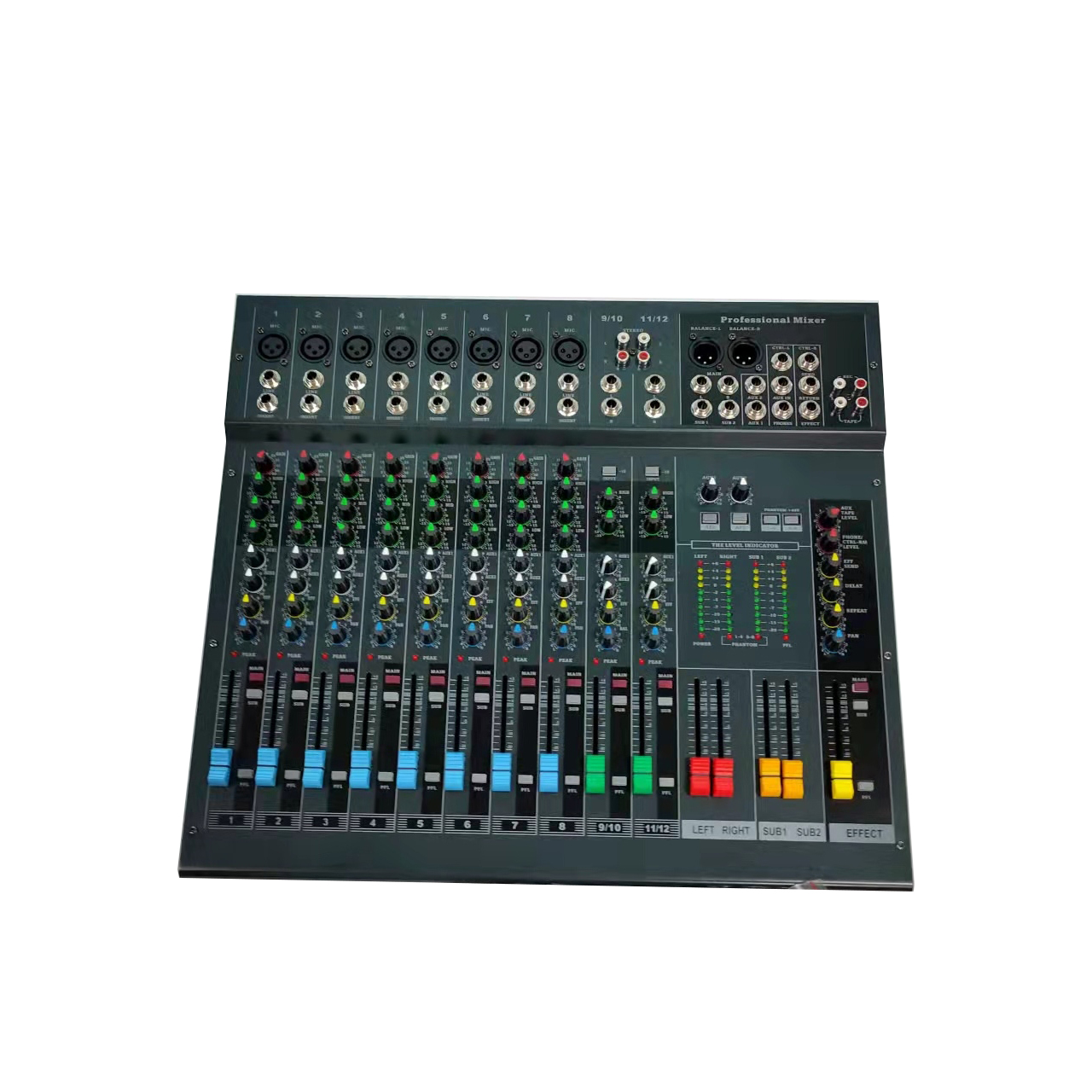

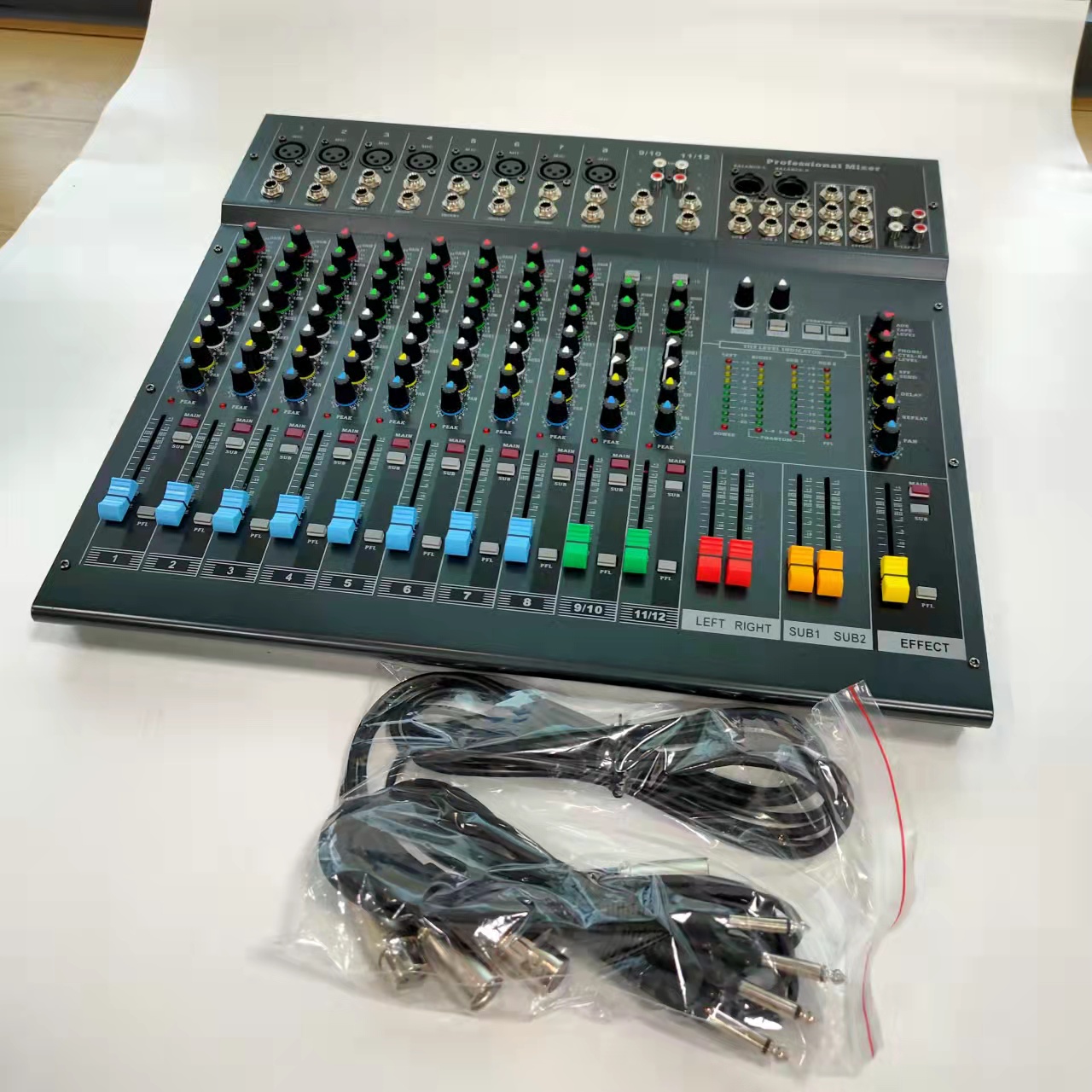

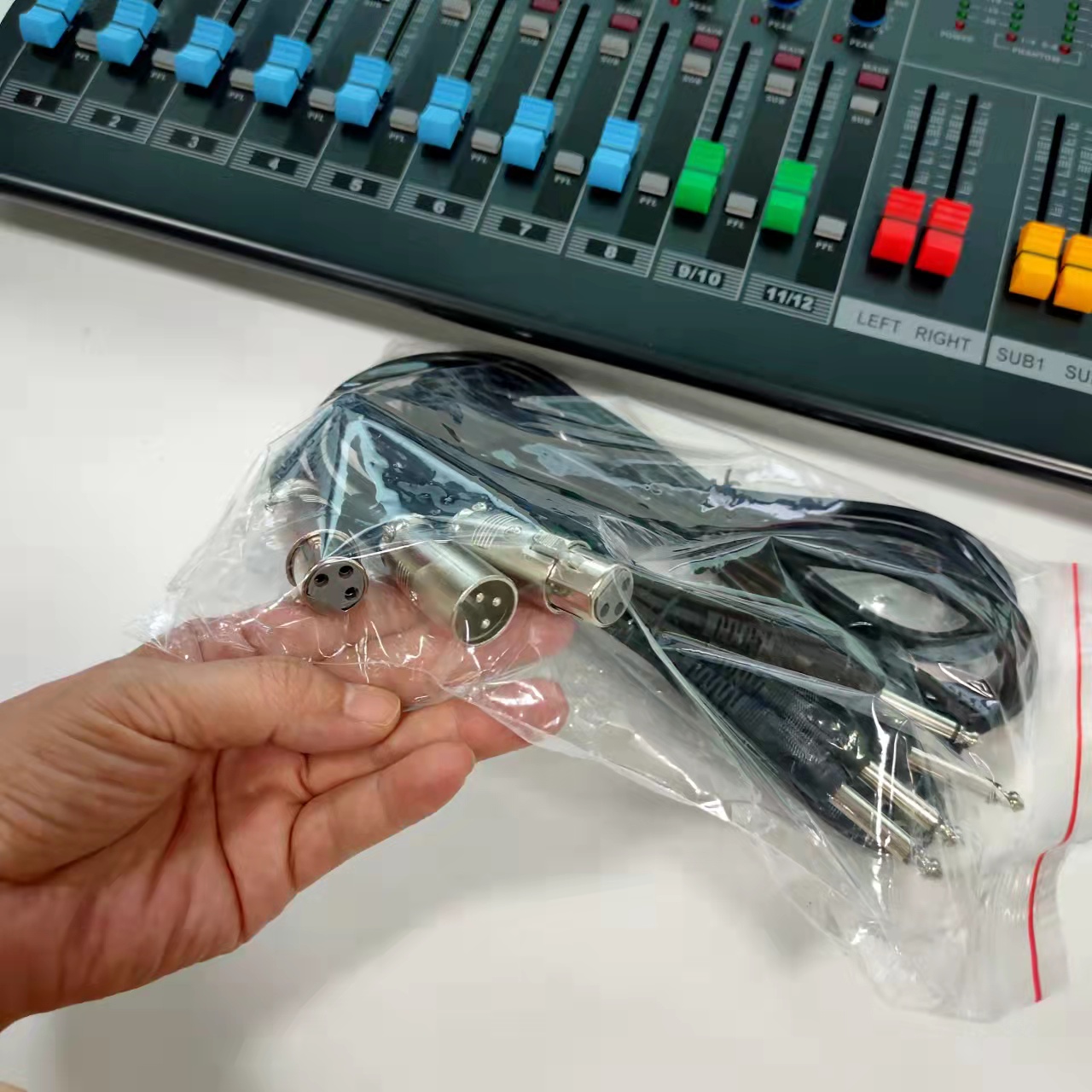

Conferencing Digital Audio Mixer Console 8 Channel 220V-240V

Place of Origin : China

Brand Name : NWS

Model Number : NWS-008

Packaging Details : polyurethane foam and carton, 1set/carton(625mm*480mm*140mm)

MOQ : 20 sets

Price : $30.00 - $200.00/sets

Type : Audio Conference System, Network Conference System, Video Conference System

Function : for paperless conference system

Simultaneous Interpretation : NO

Maximum Output Level : 19dBm (1KHz, THD=0.5%)

Residual Noise : -75dB

Signal to Noise Ratio : 71dB

Equivalent Input Noise : -12dBm

Frequency Response : 20Hz~20 KHz (+1dB,-3dB)

Headphone Power : 40mw (1 KHz, THD=0.5%, 200Ω)

Dimensions : 400mmx400mmx45mm

Power Input : AC220v~240V/50~60Hz

THD+N : ≤0.05%(1KHz,0.775V)

Contact Now

Enhance Your Video Conferencing Experience with 8-Channel Digital Audio Mixer Console

Specifications:

Maximum Output Level: 19dBm (1KHz, THD=0.5%)
Residual Noise: -75dB
Signal to Noise Ratio: 71dB
Equivalent Input Noise:-12dBm
Equivalent Input Noise:-120dBm
Headphone Power:40mw (1 KHz, THD=0.5%, 200Ω)
Equalization:
Low:80Hz±15dB
Mid:2.5KHz±15dB
High:12KHz±15dB
Gain Control:
Mono:-55dB~0dB
Stereo:-10dB~0dB
Frequency Response:20Hz~20 KHz (+1dB,-3dB)
THD+N:≤0.05%(1KHz,0.775V)
Power Input: AC220v~240V/50~60Hz
Dimensions: 400mmx400mmx45mm

Conferencing Digital Audio Mixer Console 8 Channel 220V-240V

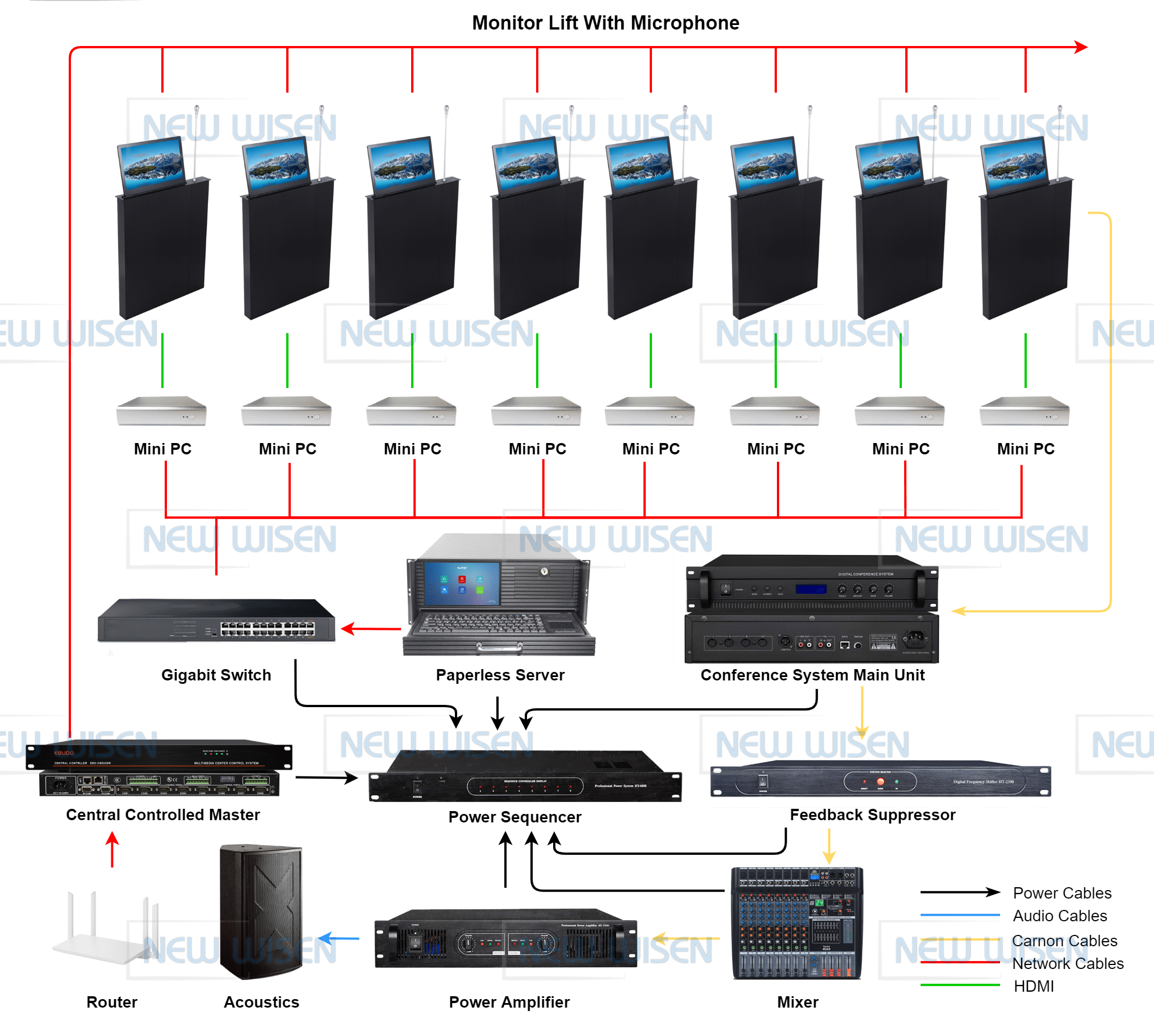

Solution diagram

Our advantage:

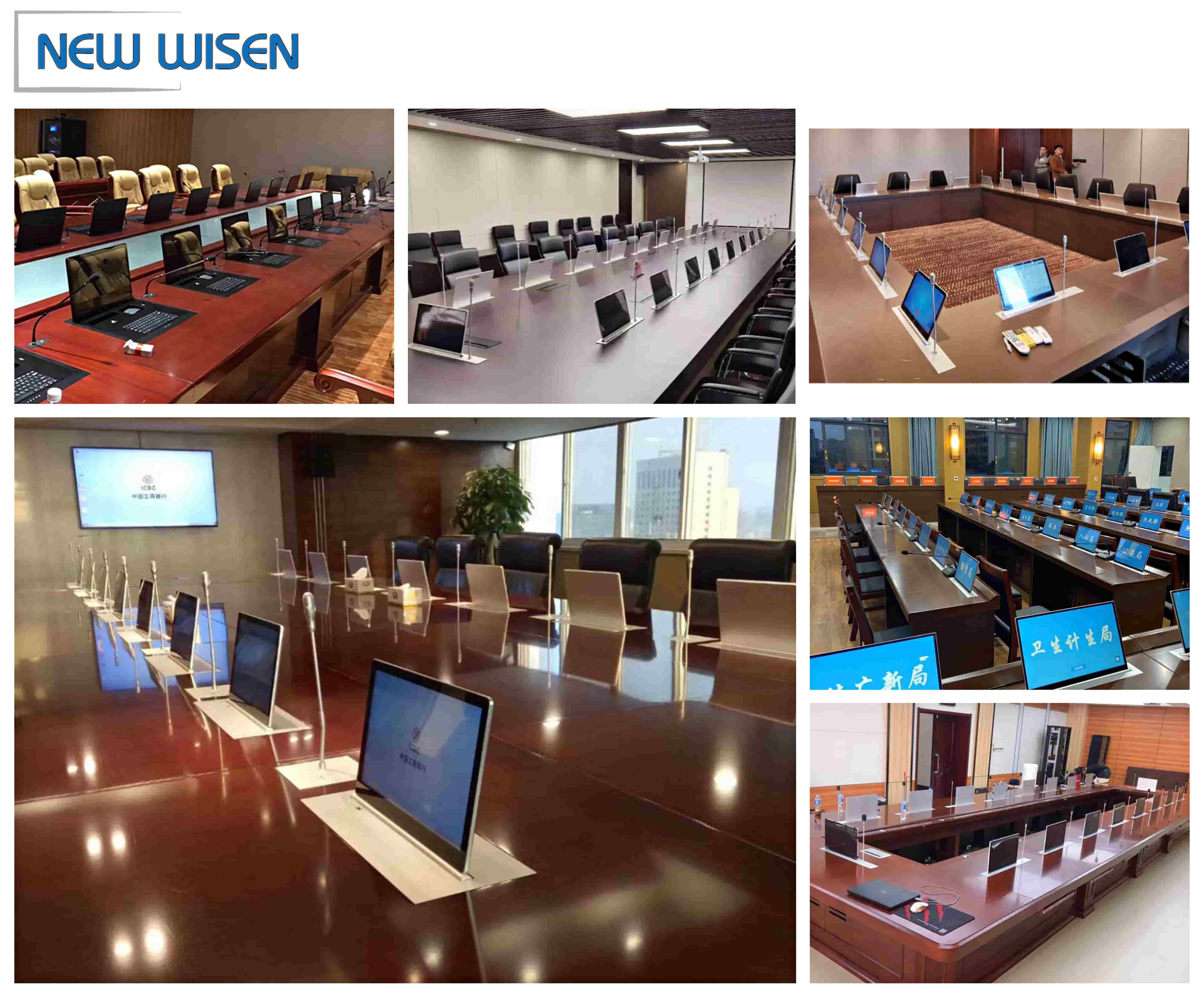

1. Have done large-scale conferences experiences.
2. Can provide paperless conference system solutions.
3. we can ensure that after-sales service support.
4. full digital transmission, the signal is not easy to interfere, more stable.
5. All products are stable technology developed and sold for many years, using high-quality foreign chips and circuits.
